A korlát szerkesztő módban módosíthatja az útvonalat, a korlát összetevőit és tulajdonságait a kiterített képen.
Hely: Épület- Korlát - Szerkesztés a kiterített képen

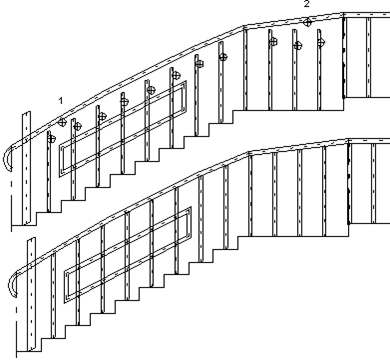

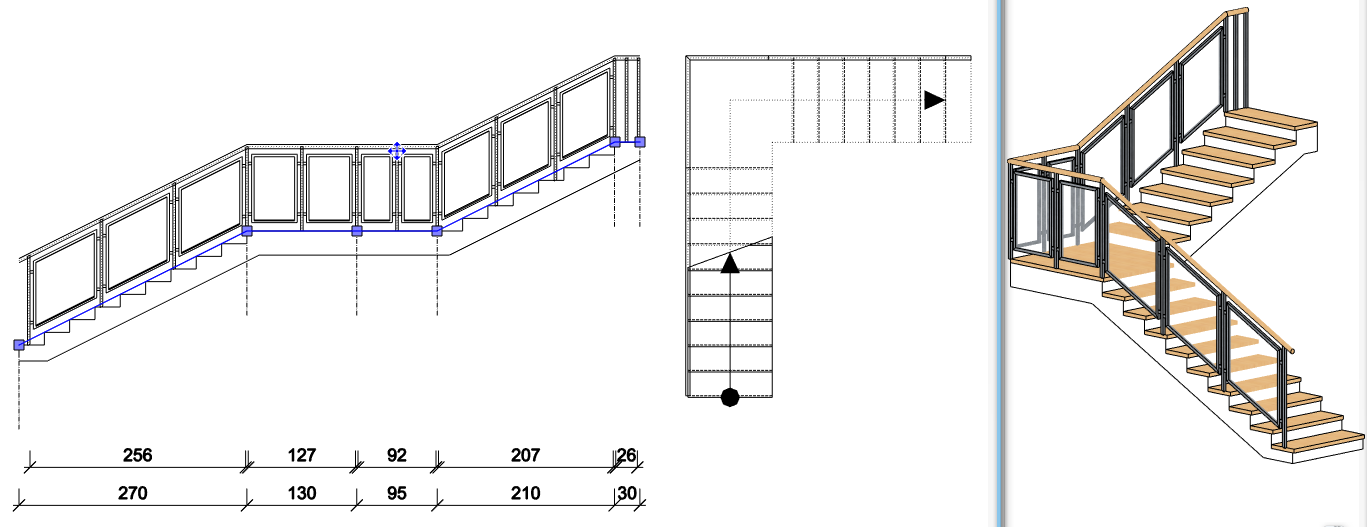

Kattintson a korlátra, és helyezze el az oldalnézetet az alaprajzon. A korlát elrendezése az alaprajzon méretezve jelenik meg. Használja a menüszalag parancsait vagy kattintson a kiemelt élekre vagy csomópontokra a korlát módosításához.
Markers appear on the layout, by which you can activate the edit commands. Depending on the node or edge you click, different commands are available.
Menüszalag:

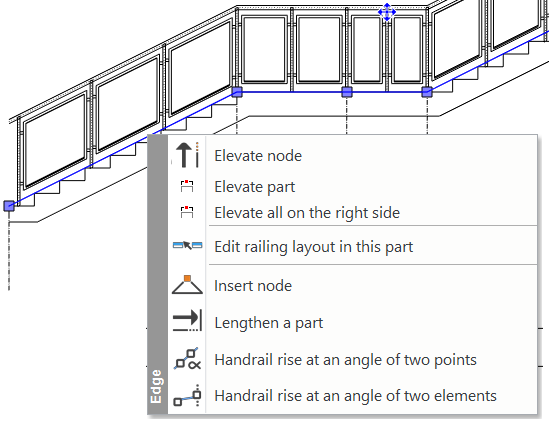

| Él: | |
| Csomópont: |
| Move | Move the selected part of the railing |
| Duplicate | Duplicate the selected part of the railing |
| Delete | Delete the selected part of the railing |
| Modify | Change the properties of the selected component only. |
| Edit railing | Edit the selected part of the railing. You can change the height of the railing, the shape used for each part, and the number of rails. |
| Add extension |
Add an overhanging end-part to the handrail |
| Add free shape |
Add an optional handrail element on a closed path |
| Adjust to handrail |
Adjust the top of the balusters to the handrail. |
| Adjust to stair / support |
Adjusts balusters to the stairs. Only the bottom of the baluster is fitted to the stairs. The length of the balusters does not change. |
| Layout on other side | Displays the layout from opposite side |
| Elevate node | Modify the elevation of the Railing node nearest to the click point graphically or entering a value. |
| Elevate part | Elevate the Railing segment. |
| Elevate all on the right side | Elevate the selected Railing segment and all the other segments that located to the right side of the selected one. |
| Elevate all on the left side | Elevate the selected Railing segment and all the other segments that located to the left side of the selected one. |
| Edit raling layout in this part |
Edit selected Railing segment independently from the other Railing segments on the Railing editor dialog.
|
| Insert node | Insert a new node between two existing Railing nodes |
| Lengthen a part | Change the length of the selected component. |

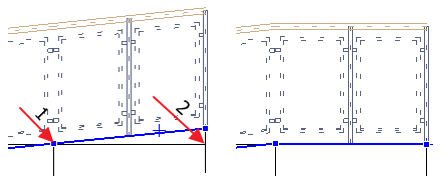

| Handrail rise at an angle of two points |
Define the slope of the selected Railing segment with the direction defined by two points. |
| Copy distribution | Copy the baluster distribution from one Railing segment to other segments. You have to click on the targeted Railing segments to copy the distribution from the selected segment. |
| Move node | Move railing node |
| Delete node | Delete railing node |
| Join parts | Join two neighbouring railing segments. |
