The ARCHLine.XP 2022 release improves the way you work with the program.
The user interface has become simpler and more convenient.
The dialog provides convenient access to recently opened files, starting new project and online knowledge base.
The status bar, provides quick access to most frequently used commands without having to open the Ribbon menu.
What has changed?
- Clean Screen
The status bar includes new option Clean Screen to maximize the drawing area by hiding the ribbon, toolbars, and panels. Clean screen does not hide the Quick Access toolbar and the status bar.
- Polar tracking

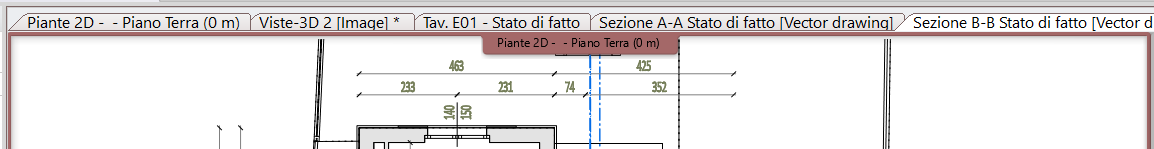

View tabs provide access to all views in a minimal amount of space. Each view has its own tab. Left-click on a tab to make it active, and right-click on a tab to access further options, Rename and Close.
The last tab with a plus sign opens a new view. View tabs are oriented below the Ribbon bar.
