Integrated D5 Render - Plugin

D5 Render is a fast and visually stunning rendering software that can be launched directly from ARCHLine.XP 2025.

The full data connection transfers the model, lights, materials, and even camera viewpoints.

In Sync mode, the D5 Render automatically updates to the modified model.

High-resolution images are generated in seconds.

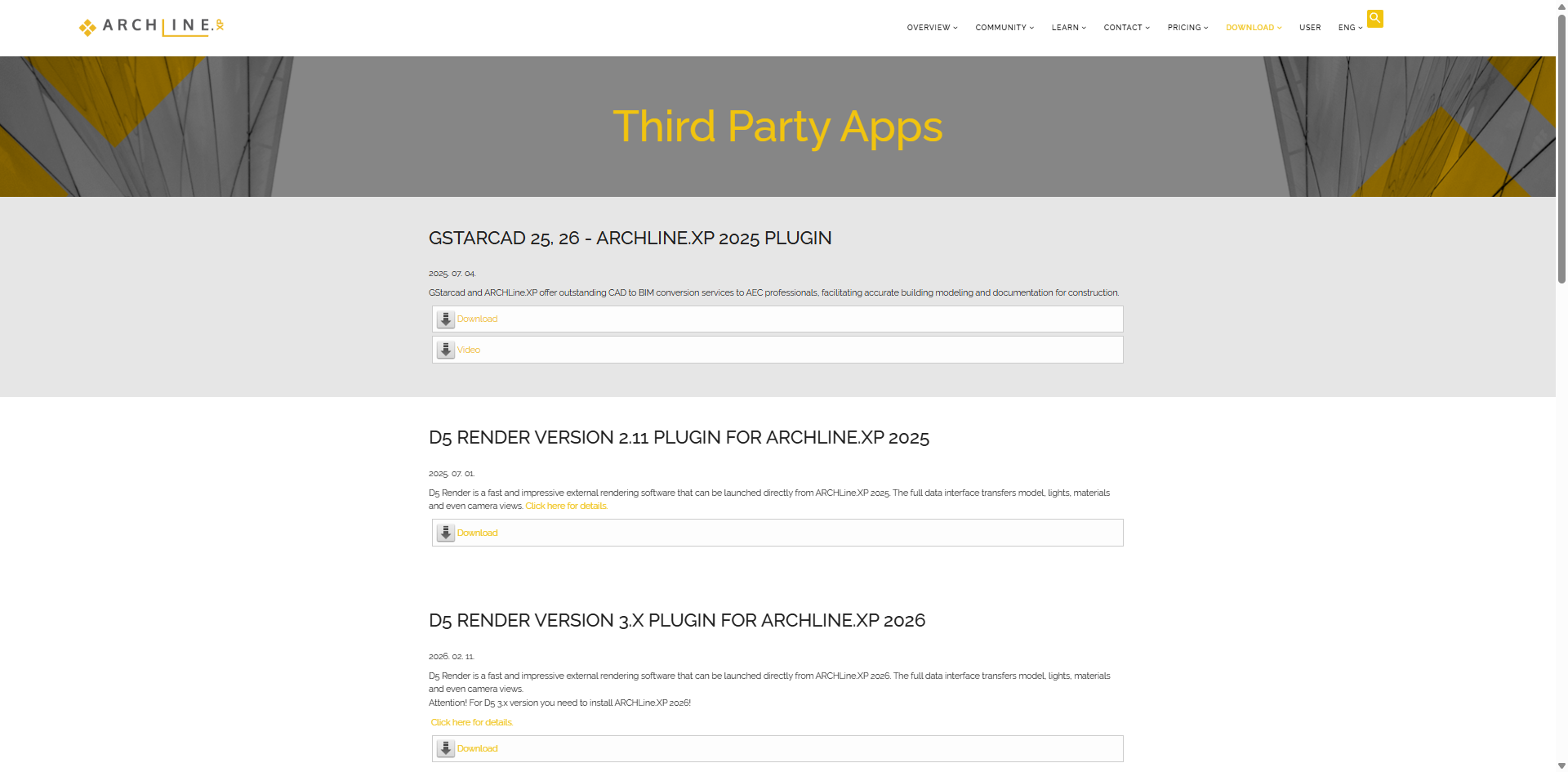

The new plugin is available for download on archlinexp.com.

Note: D5 Render plugin is available in Professional and Interior version only.

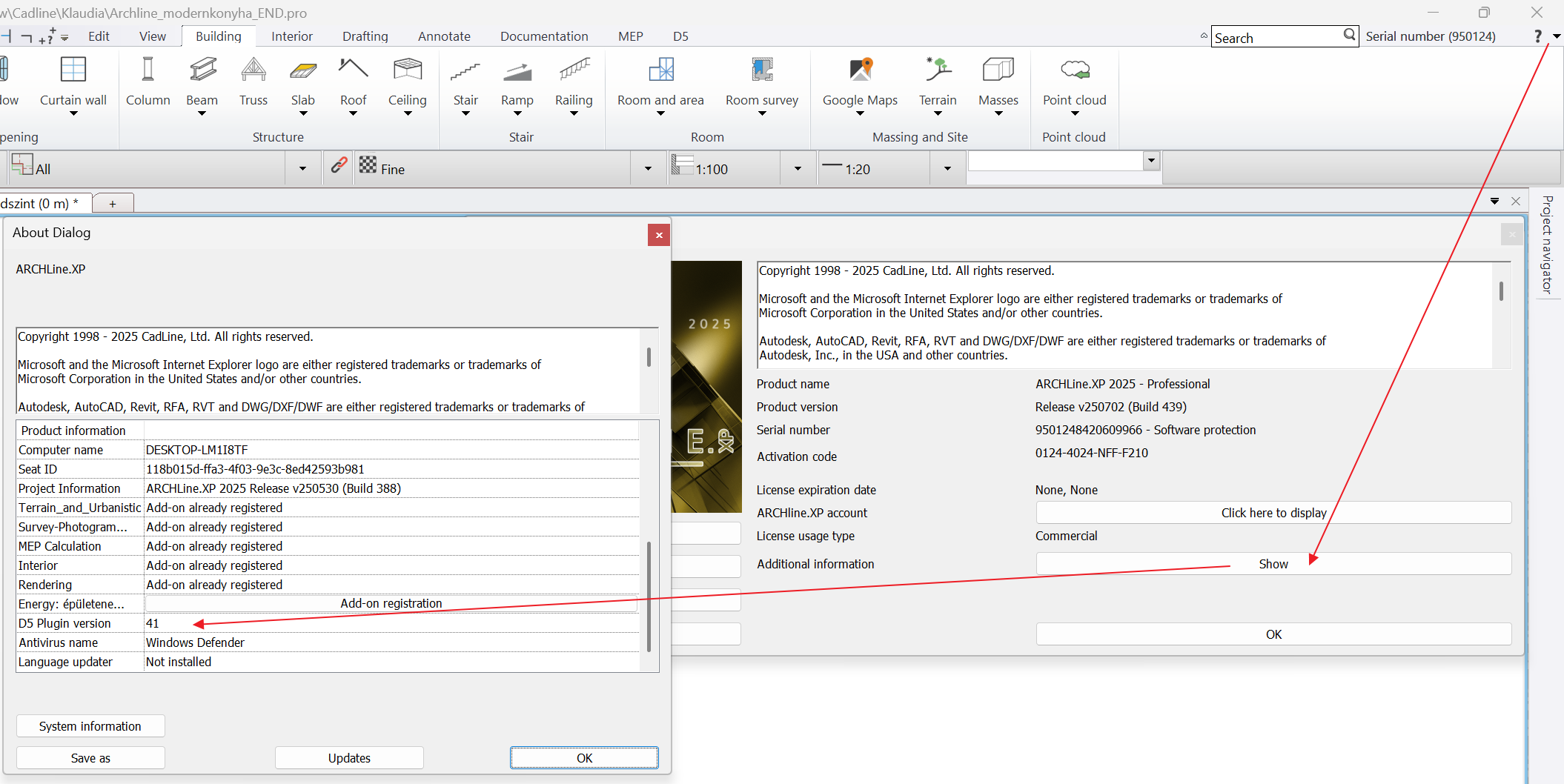

• Before installing the plugin, make sure you are running the latest version of ARCHLine.XP 2025: Build number 342 or higher. Update ARCHLine.XP if necessary.

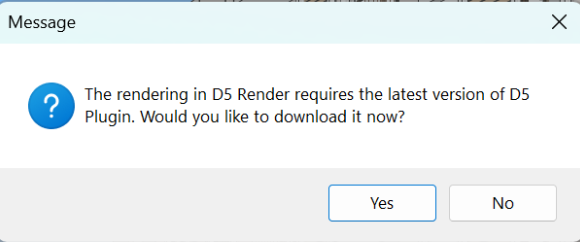

• Close ARCHLine.XP 2025 and install the D5 Render Plugin: Build number 32 or higher.
• Download and install D5 Render software. Before installing, check the system requirements for D5 Render, which may differ from the system requirements for ARCHLine.XP.

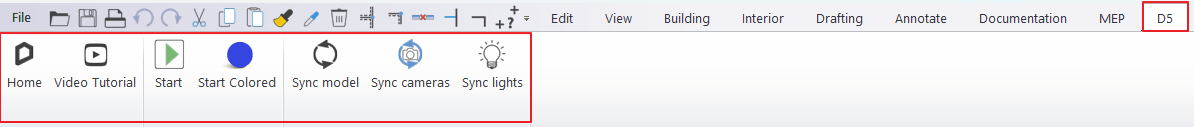

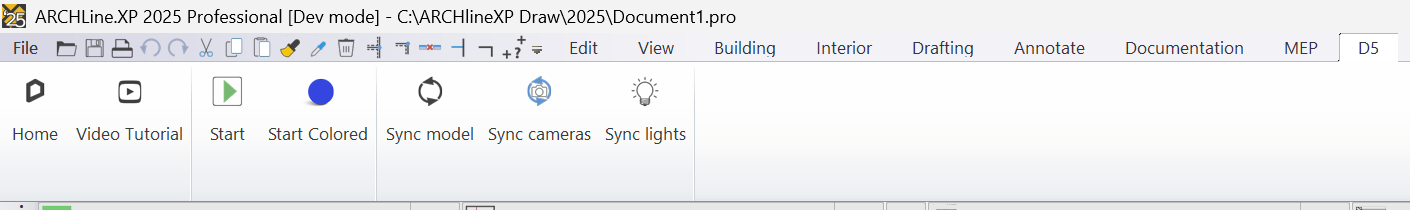

• Start ARCHLine.XP 2025. The D5 menu item will appear on the ribbon menu.

More about D5 Render

How to export model into D5 Render?

D5 Render primarily supports two methods for importing model data from ARCHLine.XP:

1. Directly export model files with textures or consistent colors.

2. Through sync commands, you can update the connection between ARCHLine.XP and D5 Render.

In addition, D5 Render Assets Library contains various high-quality models such as vegetation, characters, indoor furniture, and commercial backgrounds that can be directly used in projects.

The .skp files downloaded from 3D Warehouse can be imported into the D5 Render model, allowing for the addition of high-surface-count decorative elements to the model afterward.
