After you successfully install the latest update, the product version that appears in the Help> About dialog box: Product version:
ARCHLine.XP 2025 PROF: 64 Bit Release v251006 Build 519.
ARCHLine.XP 2025 LT: 64 Bit Release v251027 Build 524.
The latest update for ARCHLine.XP 2025 includes all changes to previously released ARCHLine.XP 2025 updates.
2025 Build 519 Release
06.10.2025.
New Features:
- AI Render. ARCHLine.XP 2025 has become even smarter. The AI Render module now includes a new, powerful tool to take your visual presentations to the next level – Virtual Staging.
Note: AI Render tool is available in Professional and Interior version only.
2025 Build 500 Release
29.08.2025.
New Features:
- Phases: Improved display of walls according to the current phase
- Floating menus can be turned on and off. Location: Options - User Interface - Displaying subcommands in floating menu
- Improved offset commands in 3D view
- Improved IFC4 export with phase value of elements (Status)
- Rebars placed in column, beam can be set even without placed element, saved in style
- Speeded up IFC export and reduced file size
- ARCHLine.XP Viewer model upload format can be specified in options (ifc2x3 or ifc4)
Issues resolved:
- Fixed the option to cut slab layers with walls and columns
- Moved subcommands in flyout menus to the ribbon. E.g. Edit - Move, Duplicate, Edit commands
- Point cloud geolocation calculation improvement
- Object searchability for special characters
- Dialogs and interface elements improvement for displaying special characters
- Warning message when reaching 4GB project file limit
- Drawing update error correction on print layout
- IFC export improvement when exporting roof beams one by one
- Room seal report correct classification of moldings in the room
- Rfa, rvt import: correct handling of special characters
- IFC import improvement and speed up
- Door wizard: correct handling of special characters
- Object save dialog: correct handling of special characters
- D5 render export also takes into account altitude
- Print correction: layout frame is not printed
2025 Build 467, 468 Release
14.07.2025.
New Features:
- AI Render and ARCHLine.XP Viewer work by entering a serial number in addition to user login.
- The floating sub-command menu is deprecated and has been removed. Missing editing options for rotate, scale, offset, and stretch commands have been integrated into the ribbon menu.
Offset's new ribbon menu command structure:
Issues resolved:
- CefSharp browser version bug. The welcome screen has been borked since last CEF update. On some computer in Windows 11 won't load at all. No error message, just a blank screen.
CefSharp browser is based on Chromium Embedded Framework, the open source version of Google Chrome. CefSharp is embedded in ARCHLine.XP.
Reverting to the last official working CEF browser version, so this issue has been resolved.
2025 Build 439 Release
02.07.2025.
New Features:
- New method for editing table text: Formatting options, Copy/Paste content.
- AI Render. Create stunning visuals in a variety of styles without wasting time. AI render works on a credit basis. Note: AI Render tool is available in Professional and Interior version only.
- Point Cloud new command - Wall detection on floor plan layout of point cloud.
The algorithm searches the point cloud for parallel wall planes with high accuracy and creates the wall with mm accuracy.
- 3D path in another 3D view - you can continue drawing the 3D path in another 3D view.
- 3D cursors are displayed in every 3D view.
- Point cloud: display level names in the adjust floor structure command.
- Point cloud: Filter dialog comes with new editable elevation values.
- New Cabinet stickers - 3D representation, number of drawers, opening type.
Issues resolved:
- D5 plugin synchronization issues resolved. A new D5 plugin can be downloaded, which must be version 41 or higher. If the D5 plugin version is older than 41, the Start command in the D5 menu will not start.
Instead, an error message will appear warning that the plugin is outdated and needs to be updated.
The version number of the D5 plugin installed on your computer can be viewed via the About dialog in the ARCHLine.XP Help menu.
- Underfloor heating grips and sizing methods issues are fixed.
- Schedule ungroup method has changed - is makes table text from the schedule instead of single elements
- Printing method may automatically switch to legacy dialog printing when using printqueue dialog, fixed.
- D5 sync error fix.
- Dwg 3D import: importing of face colors.
- IFC export workflow can be interrupted by pressing ESC.

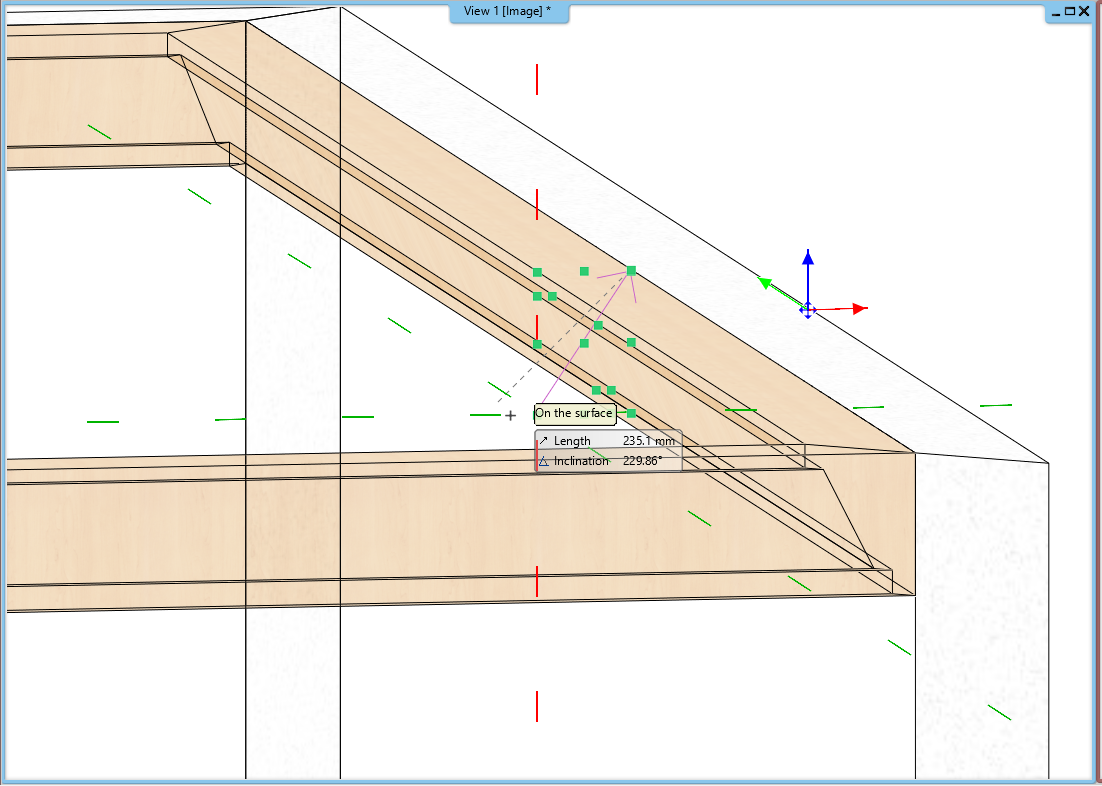

- When selecting a point on the boundary of a face, the cursor shows which plane (face) the point is on. This symbol is also displayed on inactive 3D views.
- Bug fix: In the dialog for editing the layers that turn at the end of the wall, the wall layers were displayed incorrectly if the dialog was not called directly from the drawing, but from another dialog.
- Dimension settings dialog may couse crash - fixed.
- RVT export enabled in LT version.
- Improving printing accuracy. Calculating print page size with some paper size the printing accuracy was about 2%. Fixed.
- Preserve 3D material changes on a worktop
- Subcommand floating menu for elevation dimension (top/bottom) replaced by ribbon menu commands.
2025 Build 357, 360 Release
12.05.2025.
New Features:
- Table Text editing. Upload ARCHLine.XP models and render images to Viewer mobile app.

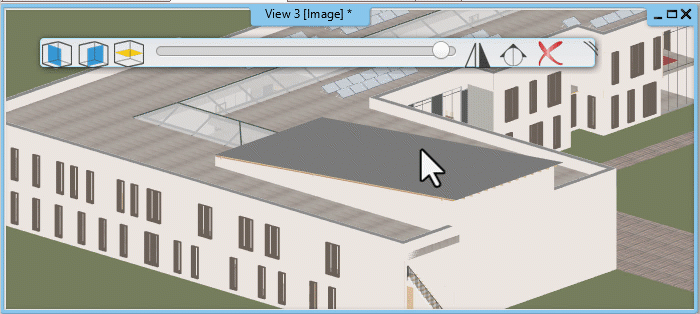

- Dynamic section interface has changed. New slider control helps to view a cross section of surfaces by dragging a plane through the model.
- RFA export with connectors. Export a selected item to an .rfa file.
- The color and line thickness of the wall layer separation lines are the same on the floor plan and the 3D section plane
- New commands to create conduit connector on object
- New checkbox that enables skipping slab cuts at the bottom of walls and columns (acceleration) - Options - Item Settings - Wall
Issues resolved:
- RVT import acceleration by an average of 30%.
2025 Build 308 Release
15.04.2025.
New Features:
- D5 render plugin released. Note: D5 Render plugin is available in Professional and Interior version only.
- Formulas for Numerical Parameters. Formulas allow you to create BIM parameters whose value depends on other BIM parameters.
Issues resolved:
- Annotate / Length / Continuous Dimensions dialog appearance bug fixed.
- Bim parameters dialog: unprotected parameters can be deleted or renamed.
- Window opening direction display in 2D window: new default setting could not be saved for new projects
-Room materials table - 90 degree rotation of room cells is allowed
-Revit import, Door/window direct import: More accurate processing of non-rectangular extrusion/sweep based cutouts.
- Simplified display of the corpus if there is a custom shape, the drawers are not shown on the floor plan
- Editable Background Mode: Post-rendering processes preserve background transparency

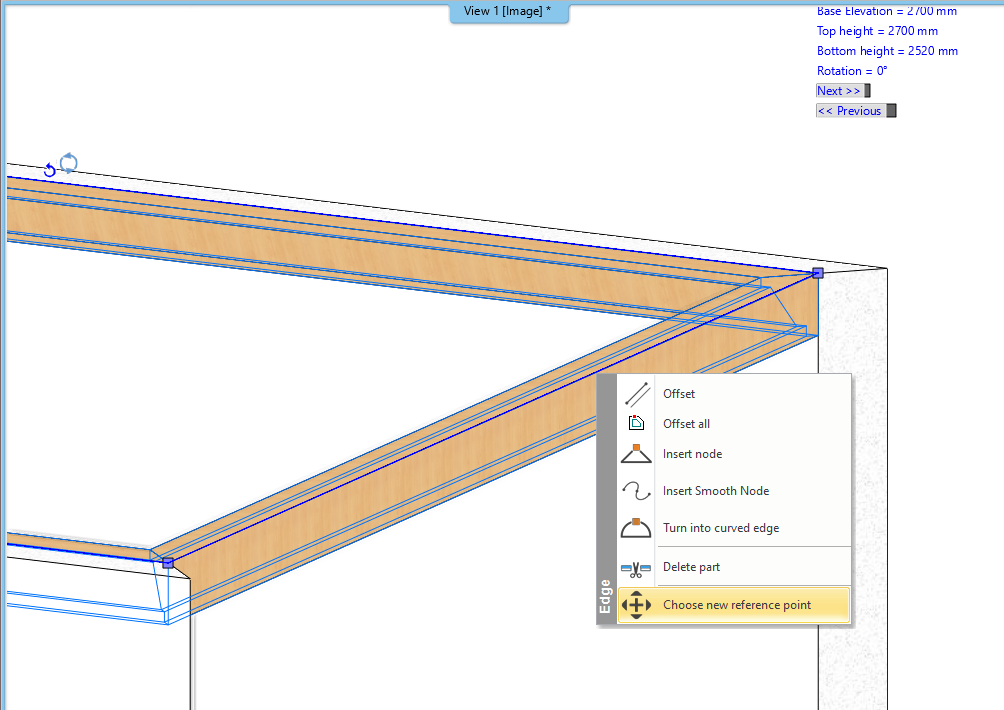

- 3D profile cross-section profile reference point graphic relocation changed: its location in the 3d sticker menu on each edge. In case of an open profile, it is displayed by the edge node.
- IfC Import/Export version 4.1 deprecated
- High resolution material new maximum (pixels) 3264*2448 = 8Mp
- Creating a new object from DWG 3D imported elements corrected geometry and material discrepancies.
